Laminate Exploration & Development Through Optimisation
“GRM are very proud to have supplied GENESIS & OptiAssist to the Formula 1® Team winning the Driver’s Championship for 16 of the last 17 years, driving a pedigree of success that can help you.” – Martin Gambling, Managing Director, GRM

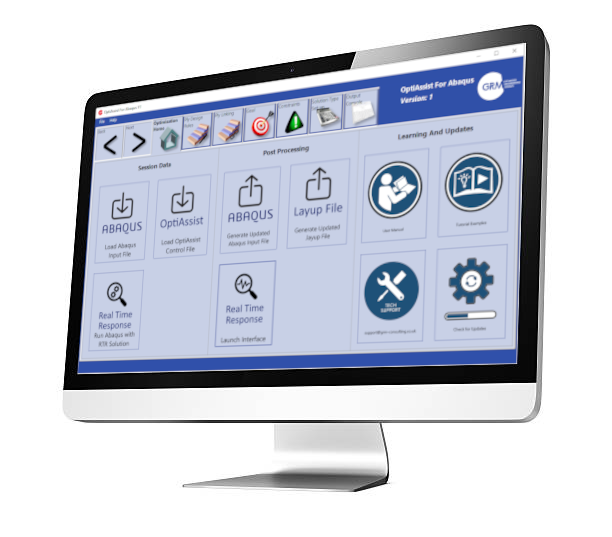

WHAT IS OPTIASSIST FOR ABAQUS?A powerful, efficient & easy to use composite laminate development tool for SIMULIA Abaqus users. Delivered as a dedicated pre & post-processing environment and solver module, OptiAssist for Abaqus uses optimisation-driven techniques to provide users with:
Using OptiAssist allows engineers to rapidly deliver high performance, lightweight products within a short timeframe. |
 |
WHY USE OPTIASSIST?
- - Eliminate costly manual iteration
- - Maximise a design's performance for multiple requirements
- - Seamlessly perform structural optimisation tasks inside your Abaqus workflow
- - Shorten laminate development times and reduce engineering iteration overhead
- - Maximise potential of composite materials through optimisation
- - Seamlessly integrate powerful optimisation tools into your engineering team
LAMINATE EXPLORATION USING REAL TIME RESPONSE
|
Requiring no further Abaqus simulations, OptiAssist’s Real Time Response module allows engineers to interrogate laminates, instantly predicting changes in displacement, mass and global stiffness. Use Real Time Response to explore laminate changes, accelerating design iteration time to deliver solutions more quickly. |
|
 |

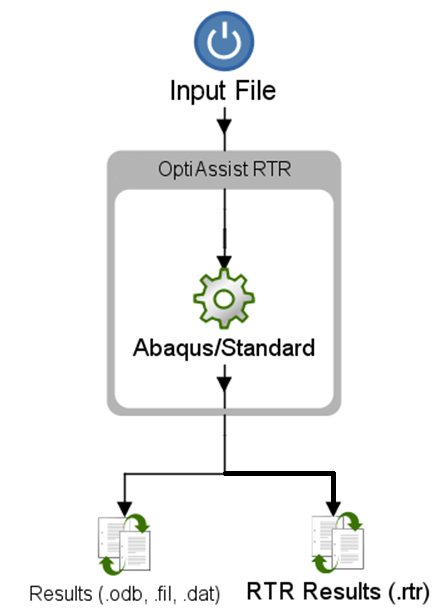

OptiAssist’s Real Time Response provides an automated flow to augment Abaqus analyses, providing live prediction & exploration of laminate changes. The fully automated flow can be integrated into standard Abaqus local or HPC based analysis solves to create the additional post-processing files for design exploration. The automated mode delivers predictions for:
Requiring no user input or data setup, incorporate Real Time Response into your Abaqus analysis submissions to add:
|
Real Time Response Evaluation of Pilbeam Elise Chassis Stiffness
PLY SHAPE OPTIMISATION
 |
The technique, developed through OptiAssist’s application in Formula 1™, allows users to automatically develop laminates based upon multiple structural requirements with the freedom to evolve the ply preforms. Users can define candidate ply materials, types and orientations and closely control the sub-division of preforms in order to achieve manufacturable solutions. |
When developing a laminate for new part geometry, composite materials present tremendous flexibility to place fibres precisely where they are needed. Understanding the ideal placement of fibres, particularly when considering multiple loading requirements, is understandably challenging. OptiAssist’s ply shape optimisation capability enables Abaqus users to efficiently identify and develop composite laminates, evolving ply shapes to efficiently meet structural requirements.

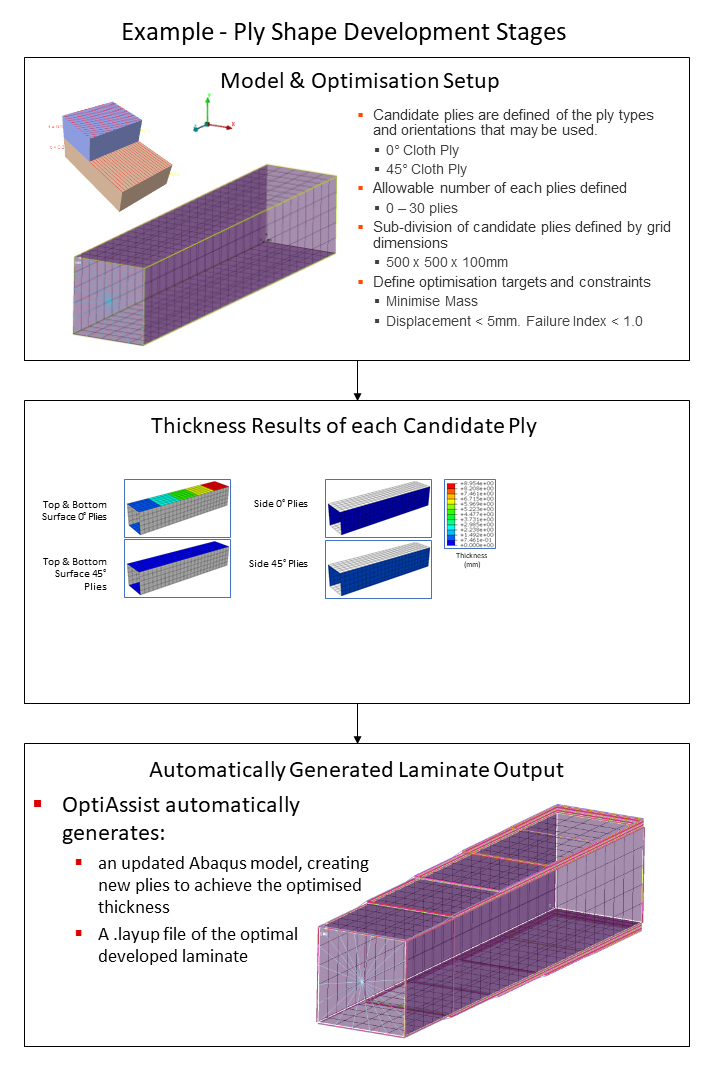

Starting from user selected ‘candidate plies’ of chosen material types and orientations, OptiAssist develops laminates with a minimal number of Abaqus simulations, presenting results in .odb, updated .inp and exported .layup formats.
|
Ply Shape Optimisation key features:
|
 |
DETAILED LAMINATE OPTIMISATION
|
Optimise existing laminates, considering both the number of plies and orientation. Considering multiple structural requirements, the detailed laminate optimisation techniques allow engineers to refine their existing designs through revisions to their existing laminate definitions, whilst not making changes to ply preform definitions. Within both ply shape and detailed laminate optimisation methods, the OptiAssist solver engine uses a minimum number of Abaqus solves, enabling results to be obtained within practical development timescales. |
|
Working directly with the Abaqus layup definitions, OptiAssist allows users to control which plies may be considered for optimisation and which must remain unchanged. Design rules allowing the change in the number of plies and orientations can be assigned to selected plies.
Manufacturing rules can be applied by:
- - Defining multiple symmetry paired plies, based upon Abaqus layup ply names
- - Grouping plies to maintain consistent relative material distributions
- - Laminate thickness control for total laminate, ply sections or regional selections
Using its internal GENESIS optimiser, OptiAssist does not require additional Abaqus simulations to develop the laminate. Detailed results are provided in the form of graphical results in the Abaqus .odb. Enabling seamless transition within your analysis and design workflow, results are provided as:
- - Summary CSV data detailing change in count of each ply
- - Updated Abaqus model data and separate include for ELSET and SECTION data
- - Layup file of updated laminate definition
 |
 |
DEVELOPED IN COLLABORATION WITH DEMANDING PARTNERS - PROJECT OPTIMA
Borne out of GRM's continued drive for innovation and the search for a performance advantage by partners RedBull Advanced Technologies and McLaren, OptiAssist for Abaqus is the output of the OPTIMA collaborative project. Supported by the Institute of Digital Engineering, the project brought together the technical competencies of GRM's optimisation expertise and the real world experience and application requirements of our collaborative partners. Learn more about the OPTIMA project here.
CONTACT YOUR LOCAL RESELLER
OptiAssist for Abaqus may be purchased directly from GRM or via one of our regional resellers, depending on your location. Contact GRM here or get in touch with one of our regional software partners.
| SmartCAE | Italy |
| TechSim | Czech Republic |
Contact us for examples of success and to discuss your particular requirements.
 |
 |
 |
